Additional information
| colour | Chrome |
|---|---|
| shape | Square |
Categories:Showers

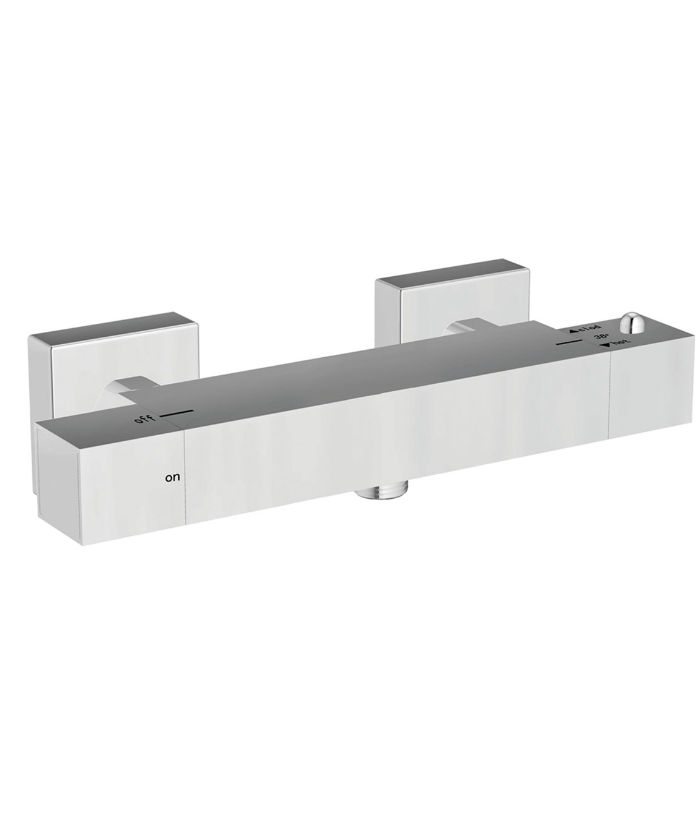

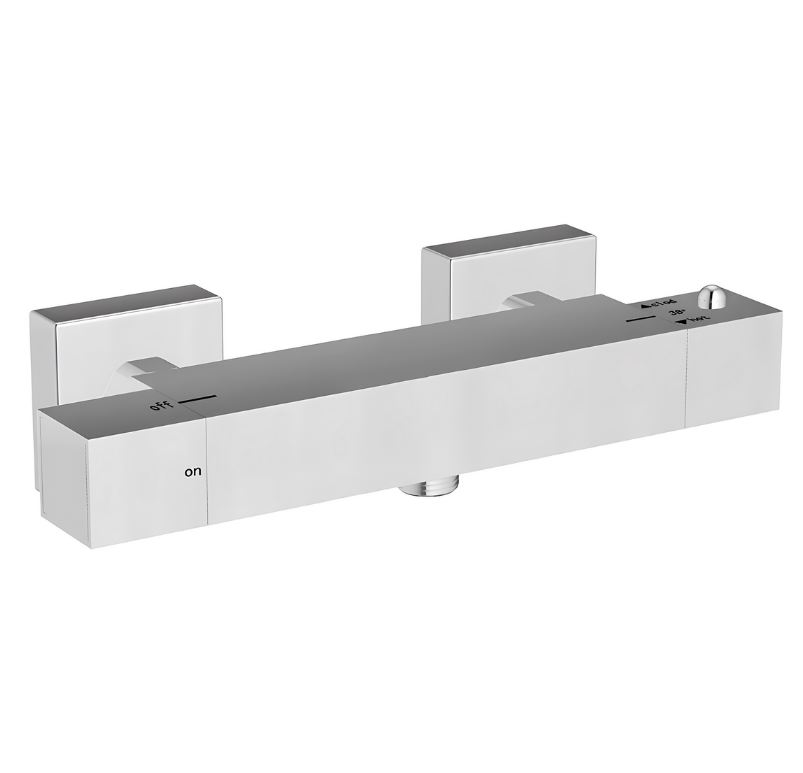

Square Thermostatic Bar Valve (Bottom Outlet) – Chrome
£44.95
- Exposed Bar Valve
- Square Shape
- Chrome Finish
- Anti-Scald System

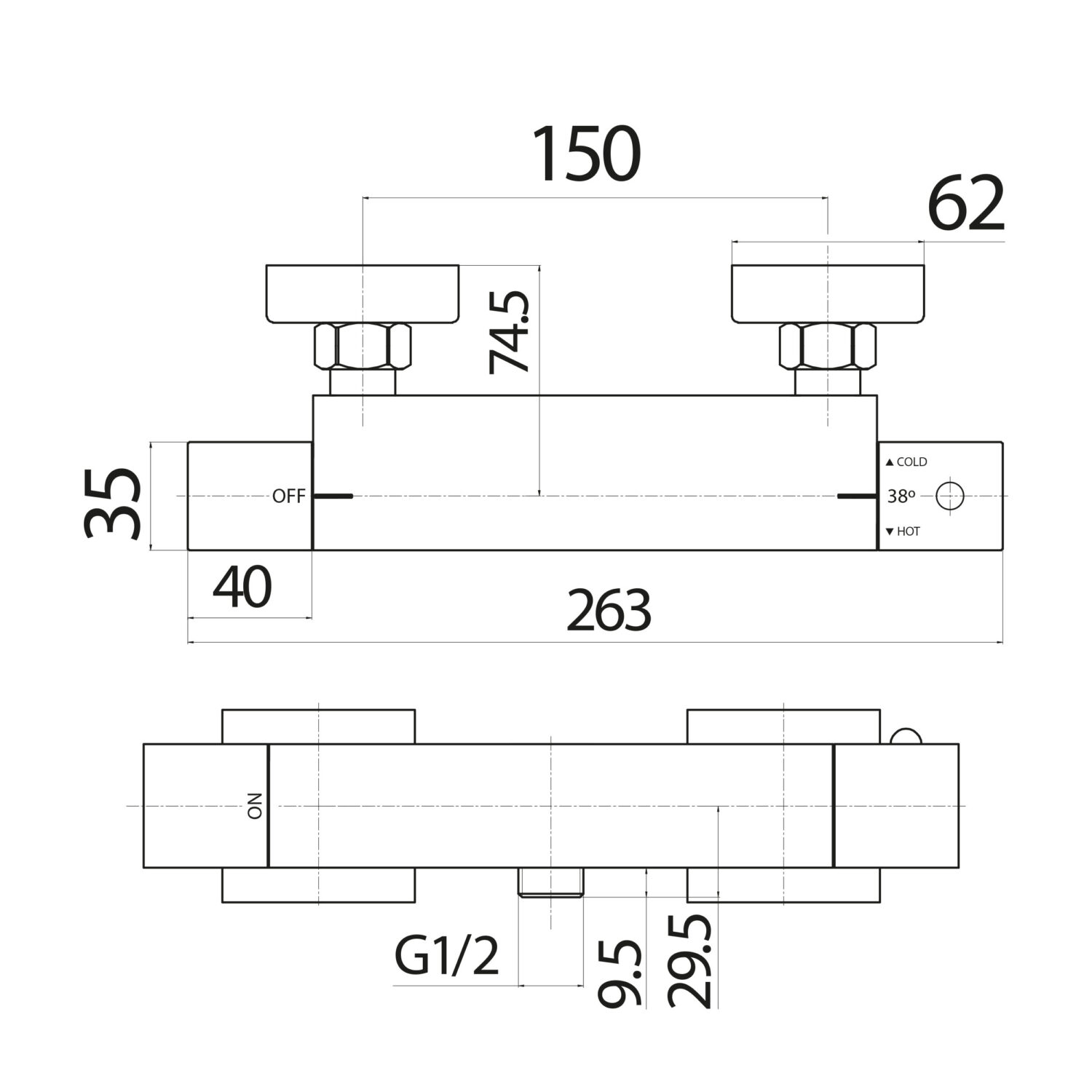

- Product Width: 263mm
- Product Height: 35mm
- Product Depth: 92mm
- Separate Flow & Temperature Controls
- Valve Shut Off In The Event Of A Water Failure
- Operating Pressure 0.5 Bar
- Thermostatic Temperature Control
- Quarter Turn Cartridge
- Pipe Centres 150mm
- Inlet Connection 3/4 BSP
- 1 Outlet
- Outlet Connection 1/2 BSP
- Shower Riser Rail Sold Separately
- Solid Brass Body
- WRAS Approved
- Flow Rate 0.5b (l/min) – 8.8
- Flow Rate 1 b (l/min) – 12.6
- Flow Rate 2 b (l/min) – 18.1
- Flow Rate 3 b (l/min) – 22.2
- Delivery From £6.95
